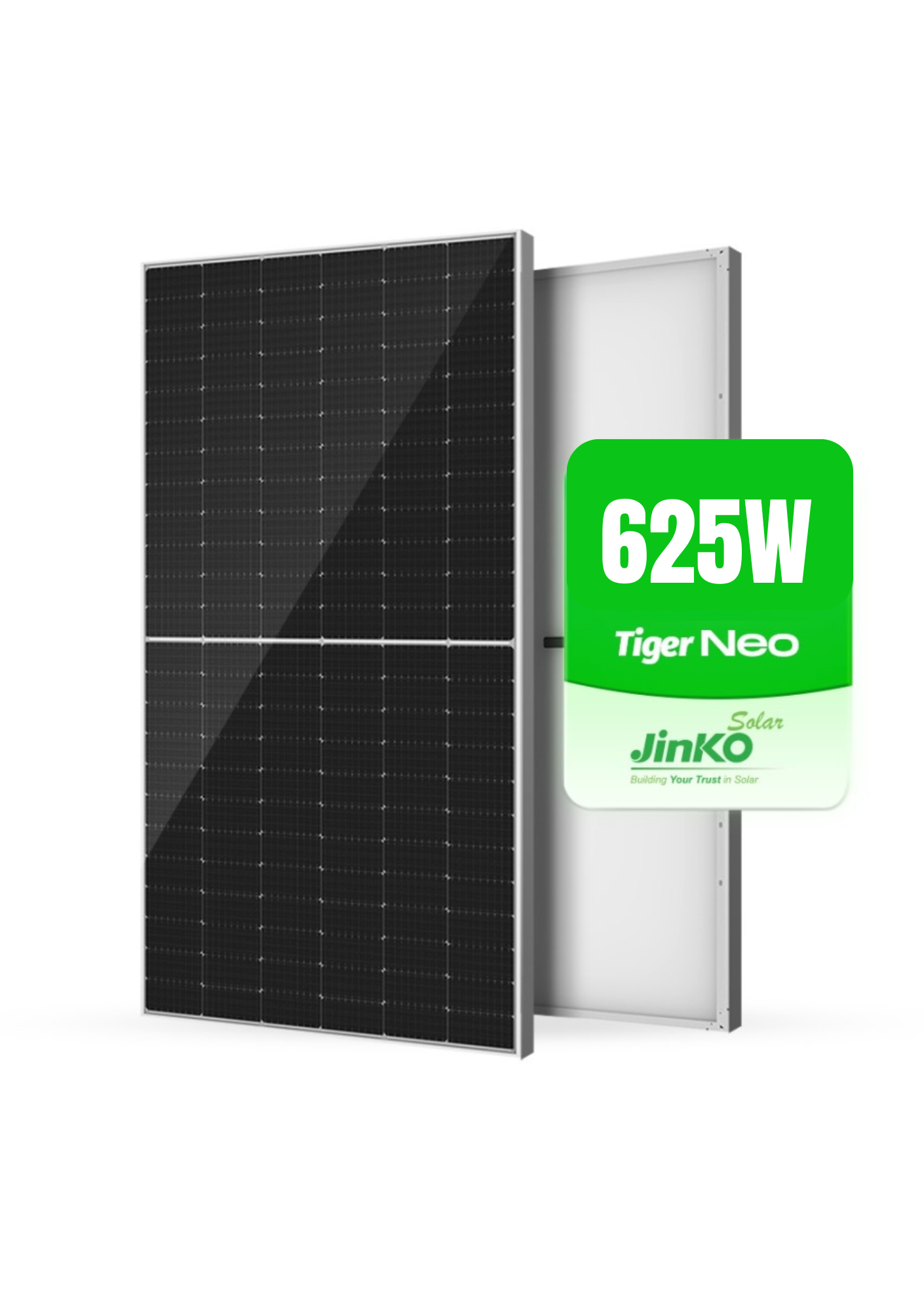

Jinko 625W Solar Panels| Bifacial

Description

General Data

• Cell: N-Type Monocrystalline, Half-Cell
• No. of Cells: 156 (2×78)
• Front / Back Glass: 2.0 mm AR Coated Tempered (Glass-Glass)
• Frame: Anodized Aluminum Alloy
• Junction Box: IP68 Rated
• Connector: MC4-compatible, TUV-certified 4.0 mm²

Electrical Parameters at STC

• Rated Power (Pmax): 625 Wp
• Voltage at Max Power (Vmp): 46.10 V
• Current at Max Power (Imp): 13.56 A
• Open Circuit Voltage (Voc): 55.72 V
• Short Circuit Current (Isc): 14.04 A
• Module Efficiency: 22.72 %

Operating Conditions

• Max System Voltage: 1 500 V DC
• Max Series Fuse: 30 A
• Operating Temperature: –40 °C to +85 °C
• Bifacial Gain: Up to 15–25 % (depending on albedo and mounting height)
