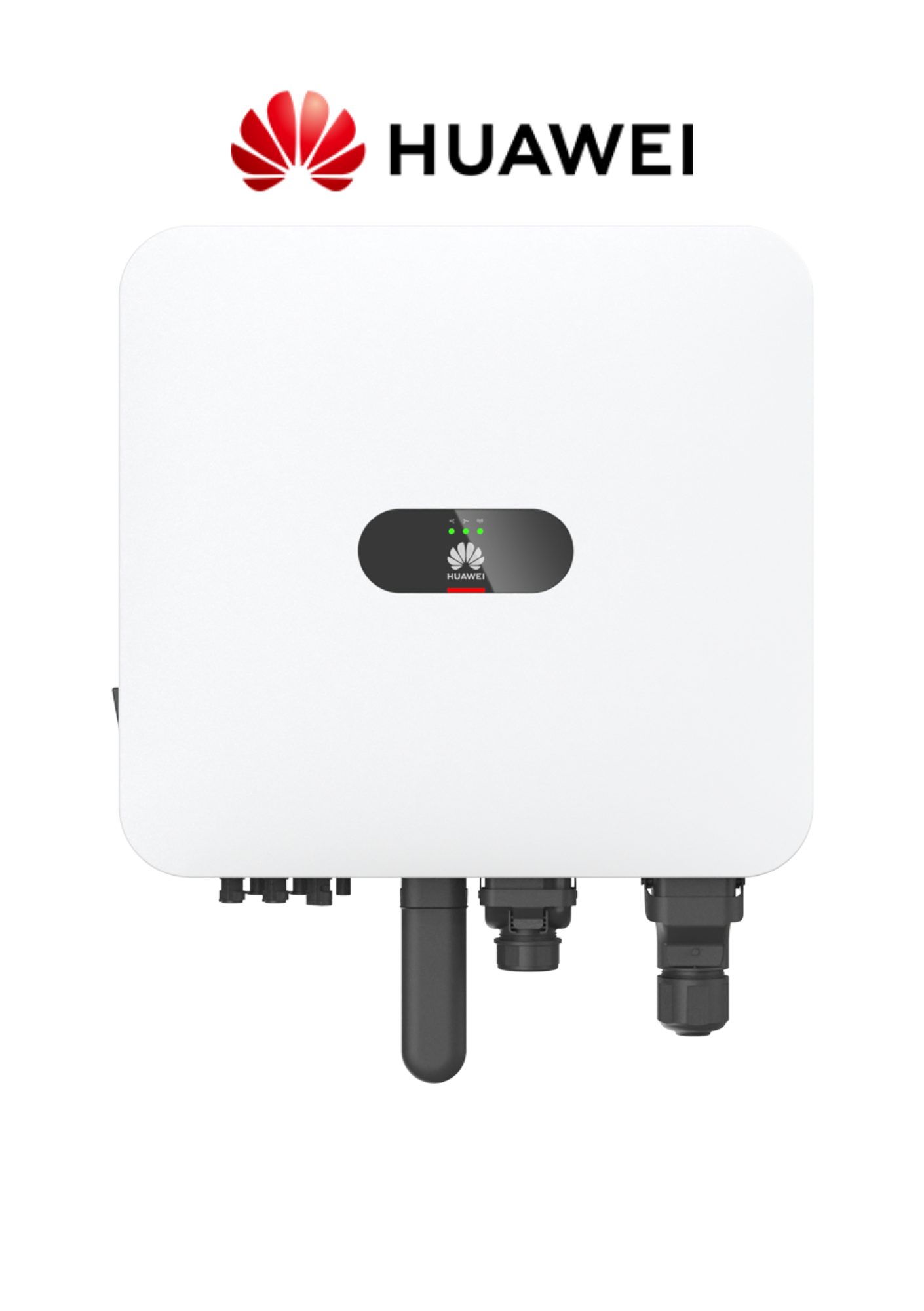

Huawei SUN2000-6K-MAP0 Grid-Tie Three Phase Inverter

Description

Technical Specifications

DC Input (PV Side)

• Rated Power: 6 000 W
• Recommended PV Power: 11 000 Wp
• Max. Input Voltage: 1 100 V
• Operating DC Voltage Range: 160 V – 1 000 V
  • Startup Voltage: 160 V
  • Rated Voltage: 600 V
• Max Input Current / MPPT: 16 A
• Max Short-Circuit Current (Isc): 22 A

AC Output (Grid Side)

• Max. Apparent Power: 6 600 VA
• Nominal Voltage / Frequency:
  • 220/380 V, 230/400 V, or 240/415 V
  • 50/60 Hz
• Max AC Output Current: 10.0 A
• Power Factor: 0.8 leading … 0.8 lagging
• THD (Total Harmonic Distortion): ≤ 3 %

Physical & Mechanical

• Dimensions (incl. mounting brackets): 490 × 460 × 130 mm
• Weight: ≤ 21 kg
• Protection Rating: IP66 (outdoor-ready)
• Cooling: Natural convection (fanless)
• Mounting: Wall-mounted
