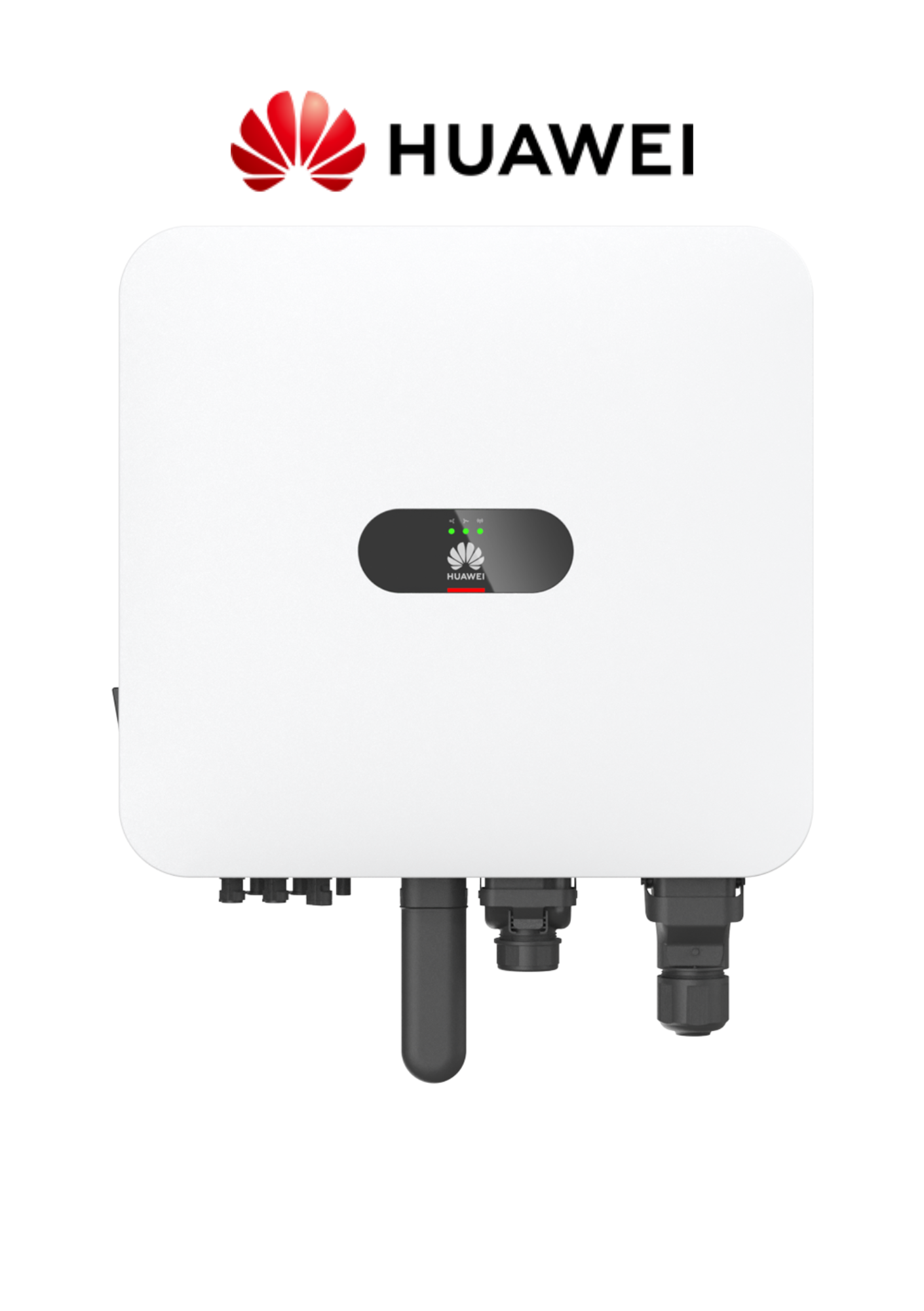

Huawei SUN2000-12K-MAP0 Grid-Tie Three Phase Inverter

Description

Technical Specifications

• Rated Output Power: 12,000 W
• Recommended PV Power: 19,800 Wp
• Max DC Voltage: 1,100 V
• Operating Voltage Range: 160–1,000 V
• Rated Voltage: 600 V
• Max Input Current / MPPT: 16 A
• Max Isc: 22 A
• AC Max Apparent Power: 13,200 VA
• AC Nominal Voltage/Frequency: 220/380V, 230/400V, 240/415V @ 50/60 Hz
• Max AC Output Current: 20 A
• Dimensions (w/ bracket): 490 × 460 × 130 mm
• Weight: ≤ 21 kg
• Backup Device: SmartGuard-63A-T0 (3-phase)
• Switchover Time: ≤ 20 ms
• Night Consumption: < 5.5 W
• Efficiency: Max 98.7%, EU: ~98.2%
• Protection: IP66, AFCI, SPD, RCD, anti-islanding, etc.
