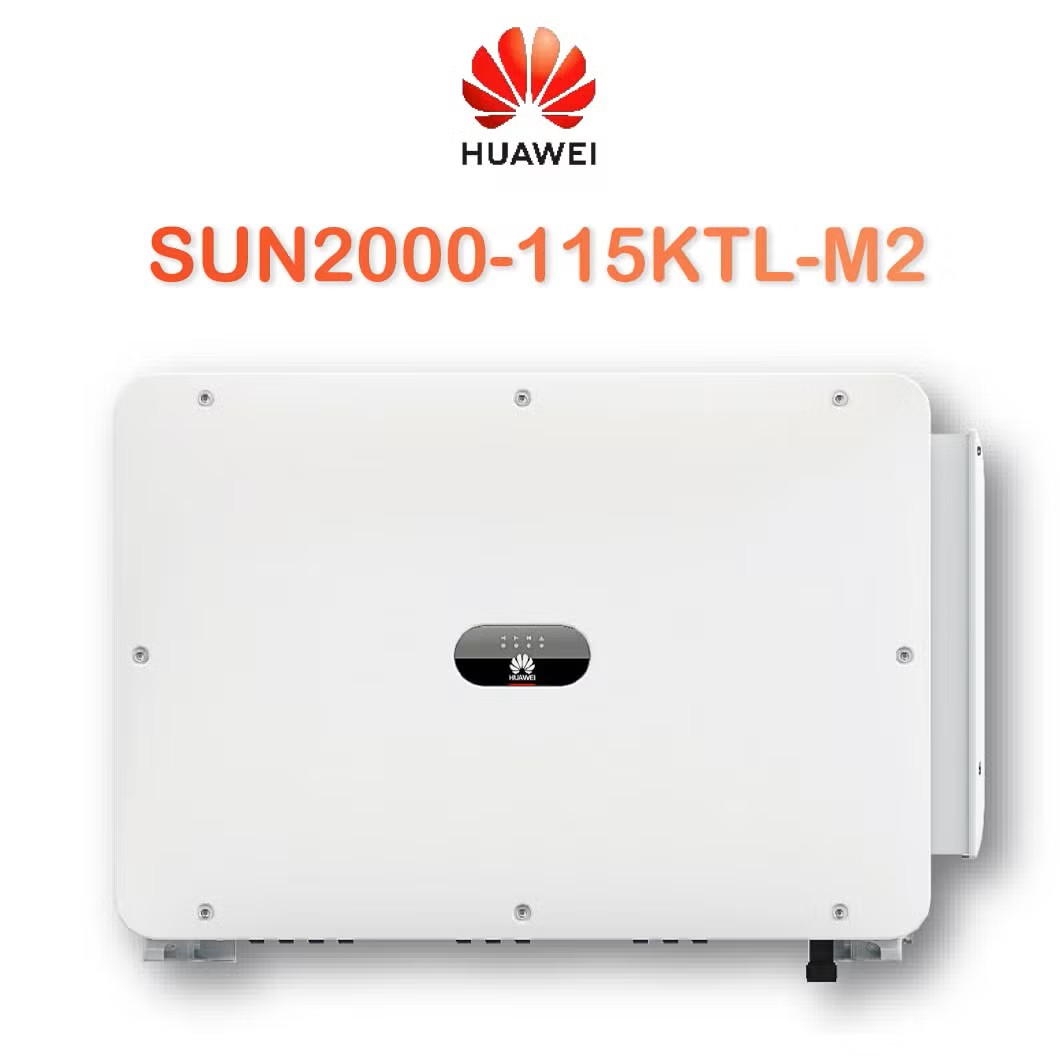

Huawei SUN2000-115KTL-M2 Grid-Tie Three Phase Inverter

Description

Key Specifications:

• Rated AC Active Power: 115,000 W
• Max. AC Apparent Power: 125,000 VA
• Max. Efficiency: 98.8% @480 V
• European Efficiency: 98.6% @480 V
• AC Output Voltage: 400 V / 480 V, 3W+(N)+PE
• Rated AC Grid Frequency: 50 Hz / 60 Hz
• Max. Output Current: 182.3 A @400 V; 151.9 A @480 V
• Power Factor Range: 0.8 leading to 0.8 lagging
• Total Harmonic Distortion (THD): <3%

DC Input:

• Max. Input Voltage: 1,100 V
• Operating Voltage Range: 200 V – 1,000 V
• Start-up Voltage: 200 V
• Nominal Input Voltage: 600 V @400 V; 720 V @480 V
• Number of MPPTs: 10
• Number of Inputs: 20
• Max. Input Current per MPPT: 30 A
• Max. Short-Circuit Current per MPPT: 40 A

Physical Characteristics:

• Dimensions (W × H × D): 1,035 × 700 × 365 mm
• Weight: ≤93 kg
• Cooling Method: Smart Air Cooling
• Protection Degree: IP66 (suitable for outdoor installation)
• Operating Temperature Range: -25°C to +60°C (derating above 45°C)
• Maximum Operating Altitude: Up to 4,000 m

Features:

• Transformerless topology
• Integrated DC switch
• Type II surge protection for both DC and AC sides
• Residual Current Monitoring Unit (RCMU)
• PV string fault monitoring
• Smart I-V Curve Diagnosis support
• Communication interfaces: RS485, USB, MBUS (isolation transformer required), Bluetooth/WLAN via app
